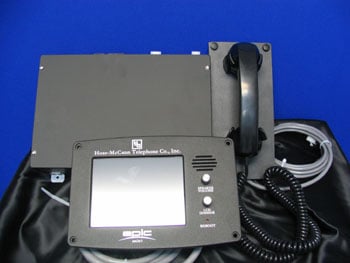

EPIC-MINI EPICenter for integrated communications
Interior Flush Mounted Unit - Touch Screen Activation / Display


>Centralized Access via Interactive Touch Screen Menus to the ICP Communications Network:
>Standard Automatic Dial Telephone System
>VoIP Telephone System
>Public Address System
>Talkback System
>General Alarm / Fog System
>Password Protection of Administrative Functions
>Trouble / Even Logging Features
>Automatic Fault Diagnostics with Trouble Reporting
>Adjustable Speaker Volume and LCD Backlighting
>Distributive Architecture using LAN based hardware
>Fully Customizable Graphic User Interface

Available Options:

>Environmental enclosure for Outdoor Use
>Boom Mic with Foot-pedal Activations
>Various console mounted or standalone LCD touch screen sizes available


The EPIC is the Epicenter of the Hose-McCann ICP, Integrated Communications Platform, which provides users with centralized access to multiple communications systems on a vessel via Interactive Touch Screen Menus. Touch Screen Menus lead the user from one function to the next in a series of fully customizable graphics. The unit integrates telephony and computer-based technology while retaining the same auto-fault characteristics of the Hose-McCann Integrated Public Address / General Alarm Systems, providing trouble alarms for system failure. This single unit design saves cost and space of installing seperate control panels for individual communications systems.

Security features are available as programmable options. Password protection can be used to lockout certain functions from unauthorized personnel. Inherently, the EPIC retains trouble fault and event log, which can be used to track and maintain system integrity.

Standard user control elements include a telephone handset, monitor speaker, touch screen display and volume control. The hardware and software can be customized to suit specific applications. Alternate housings, monitor displays and microphone / handset options are available.

EPIC-MINI Specifications:

Material: Face Plate - Aluminum
Touch Screen - 6.4" High Resolution Color LCD
5-Wire Resistive Panel
Finish: Textured Black Powder Coated
Dimensions: 6.5" (16.5cm) H x 9.5" (24.1cm) W x 3.5" (8.9cm) D
Weight: 4.25lbs (1.9kg) Approx.


Add to Request for Quote

We invite you to call us at (954) 429-1110 to discuss your communication needs.
